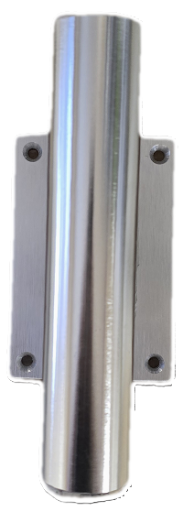

Ram Rod Transom Sleeve
$155.00
Ram Rod transom sleeve mounts to the transom of your boat. Just slide the Ram Rod thru the sleeve into the bottom to hold your boat anchor on the spot.
These sleeves are hand made of 100% aluminum to provide rope free anchoring of your boat. They are available in 2 styles. Find the right one for your boat
Description
- Footprint: 5 Degree 6”x4”x ¼ “ Rectangular shape

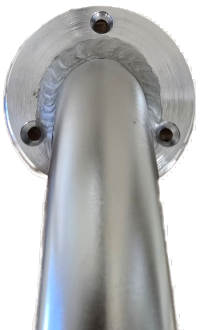

- Footprint: Top Mount 4”x4”x ¼ “ Circular shape
- Rod Hole Diameter: 1”
- Dimensions: 5 Degree 6 ½ “x 8 ½” x 4”
- Dimensions: Top Mount 8” x 12 ½ “ x4”
- Material Insert: PVC sleeve
- 2 styles: 5 degree, Top Mount. Custom sizes available upon request. 20 degree recommended for majek boats.
- 5 degree securely mounts to transom: ½ “ wall thickness required for installation.Span the load when using a backer plate, be sure it’s larger than the transom sleeve footprint for a sturdy hold.
- Top Mount to be installed on bow
- Weight: 2 lbs
Package includes:
- Transom sleeve
Hardware: Bolts and washers not included.
Bolt size: ¼ “ bolt with large fender washers required for installation
